Name: Horizont KMZ Panoramic 35mm Film Camera from URSS - Tested, Excellent
Brand: Camistry.eu
Price: 199.9 EUR
Availability: OutOfStock

€199,90 EUR

Film tested and in perfect working condition. The rotating mechanism works nicely and the exposure is quite even.

Deeply cleaned and sanitized.

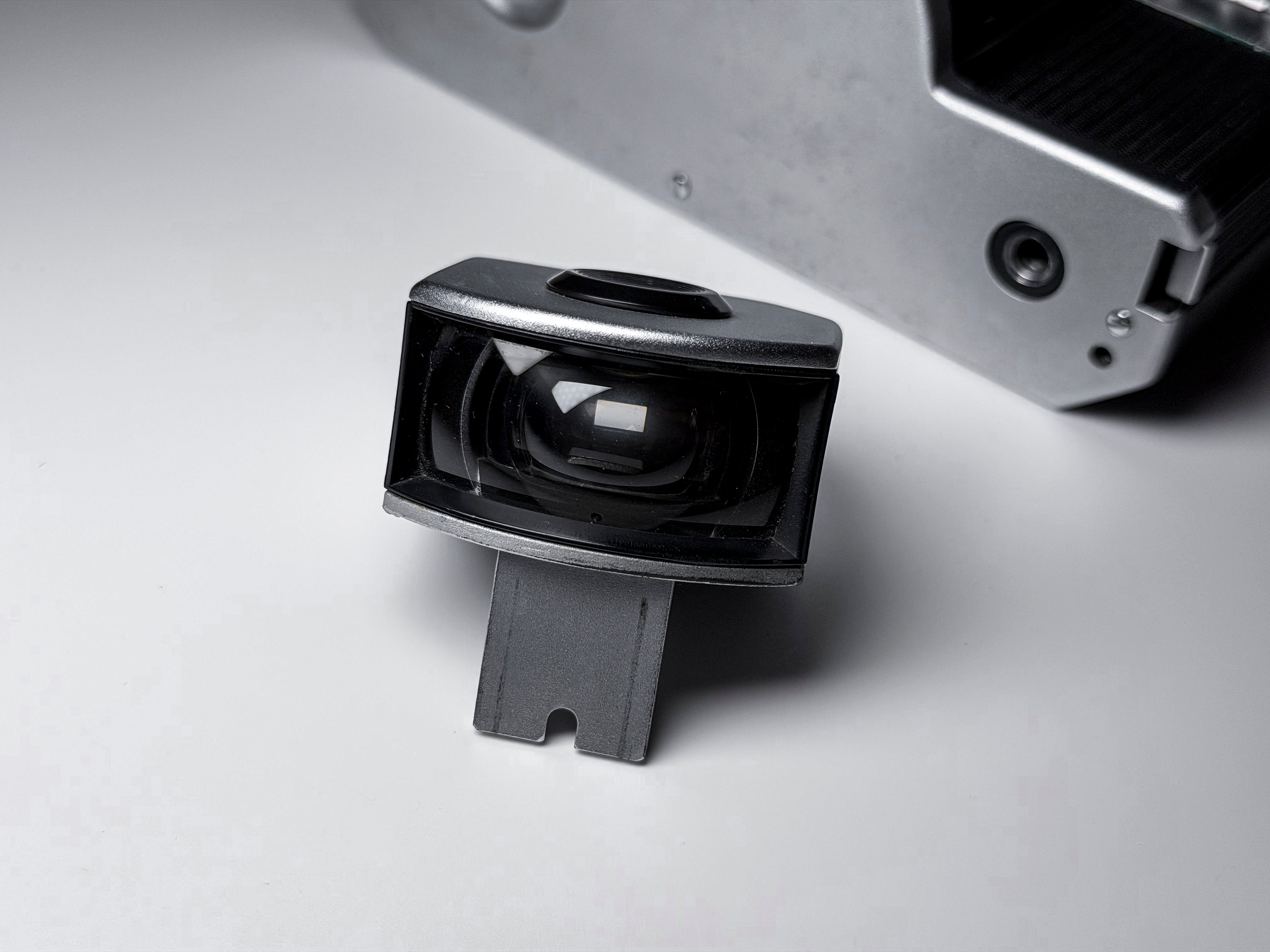

Excellent overall cosmetic state, only very minor wear. The bubble on the finder is barely visible, the windows is opaque.

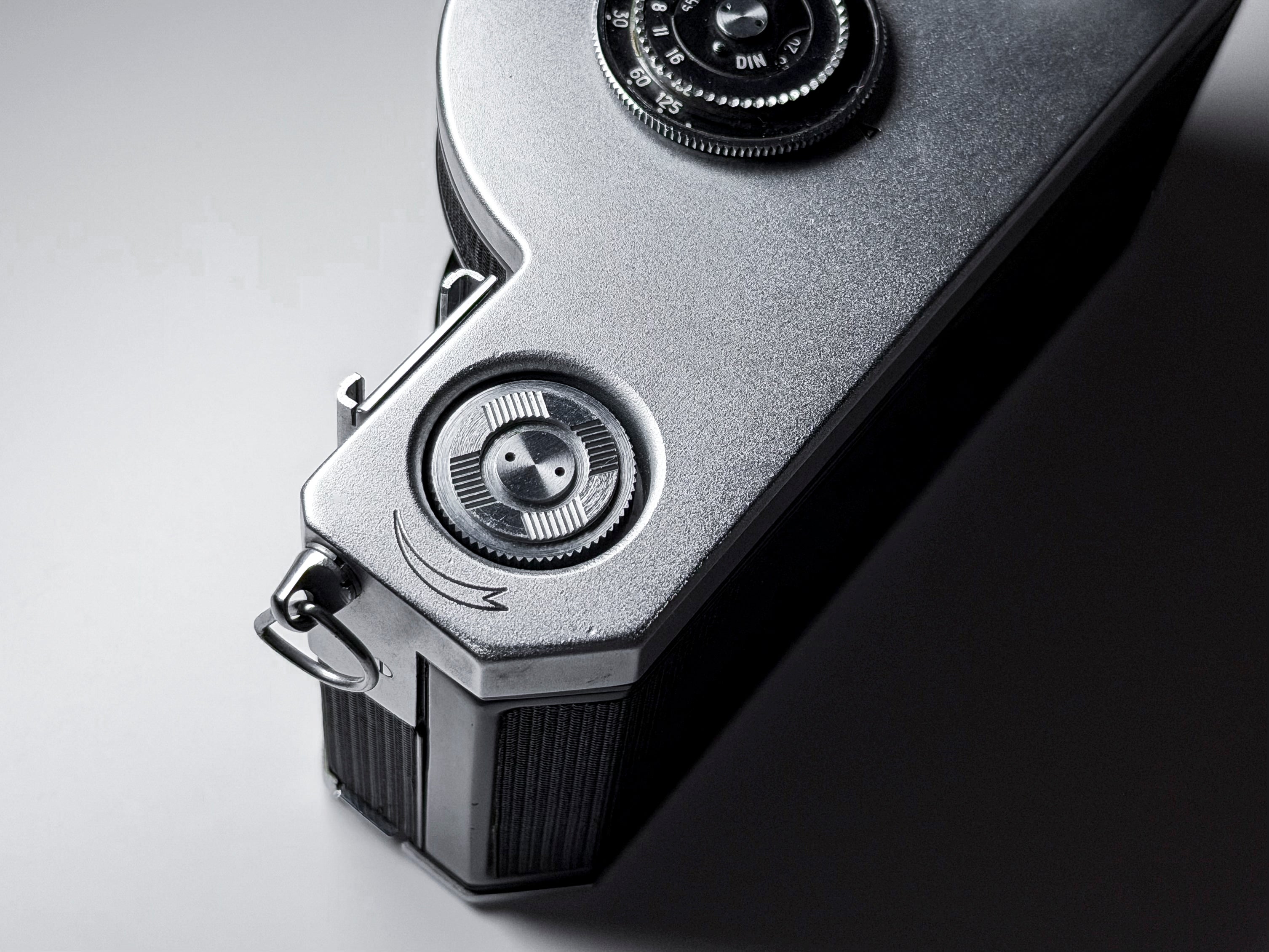

All the buttons and dials function flawlessly. The lens is free of haze, fungus, or significant dust.

Condition Recap:

✅ Thoroughly tested and perfectly working

✅ Cleaned and UV-sanitized

✅ Excellent lens condition, totally clean from fungus, haze or significant dust

✅ Excellent cosmetic state

What's Included: KMZ Horizont Camera

Pre-owned item. Sold under the margin tax scheme (0% VAT applicable). A business invoice can be issued upon request, please provide your company details immediately after purchase. VAT may still apply at delivery for extra-eu customers.

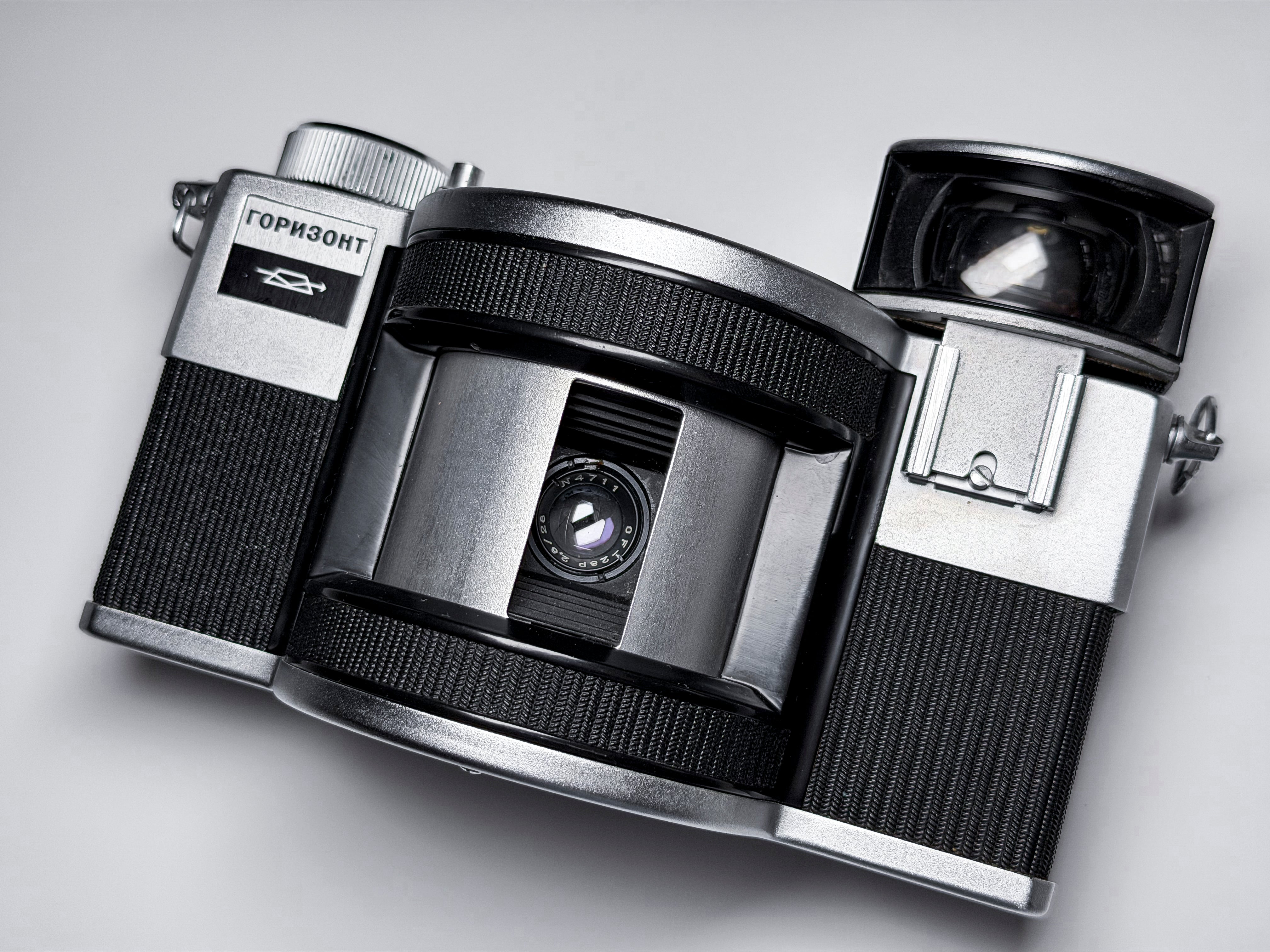

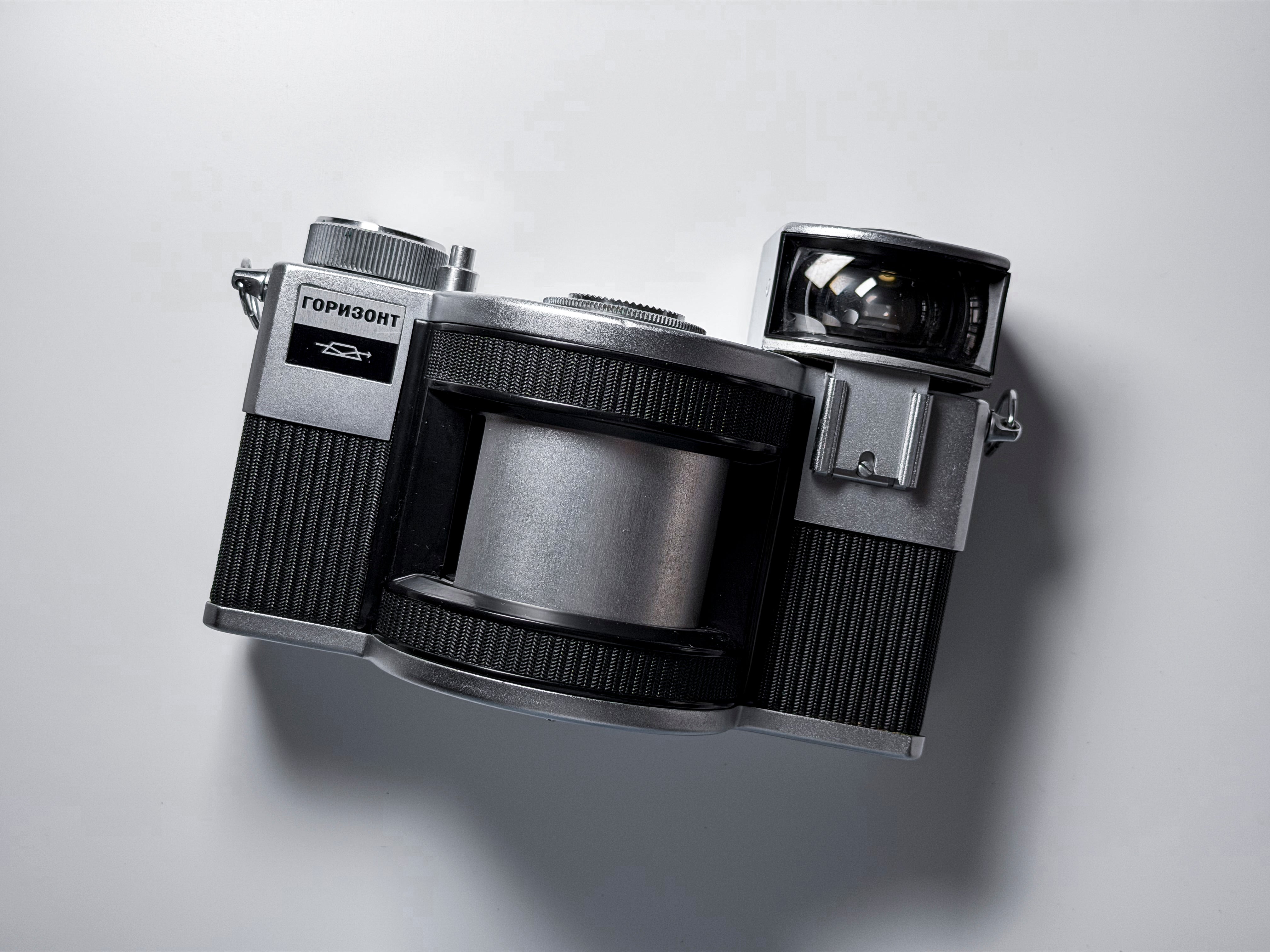

The KMZ Horizont is a 35mm panoramic film camera produced by the Krasnogorsk Mechanical Factory (KMZ) in the Soviet Union. It employs a swing-lens mechanism to capture wide-angle images with a 120° field of view on standard 35mm film, producing negatives of approximately 24×58 mm.

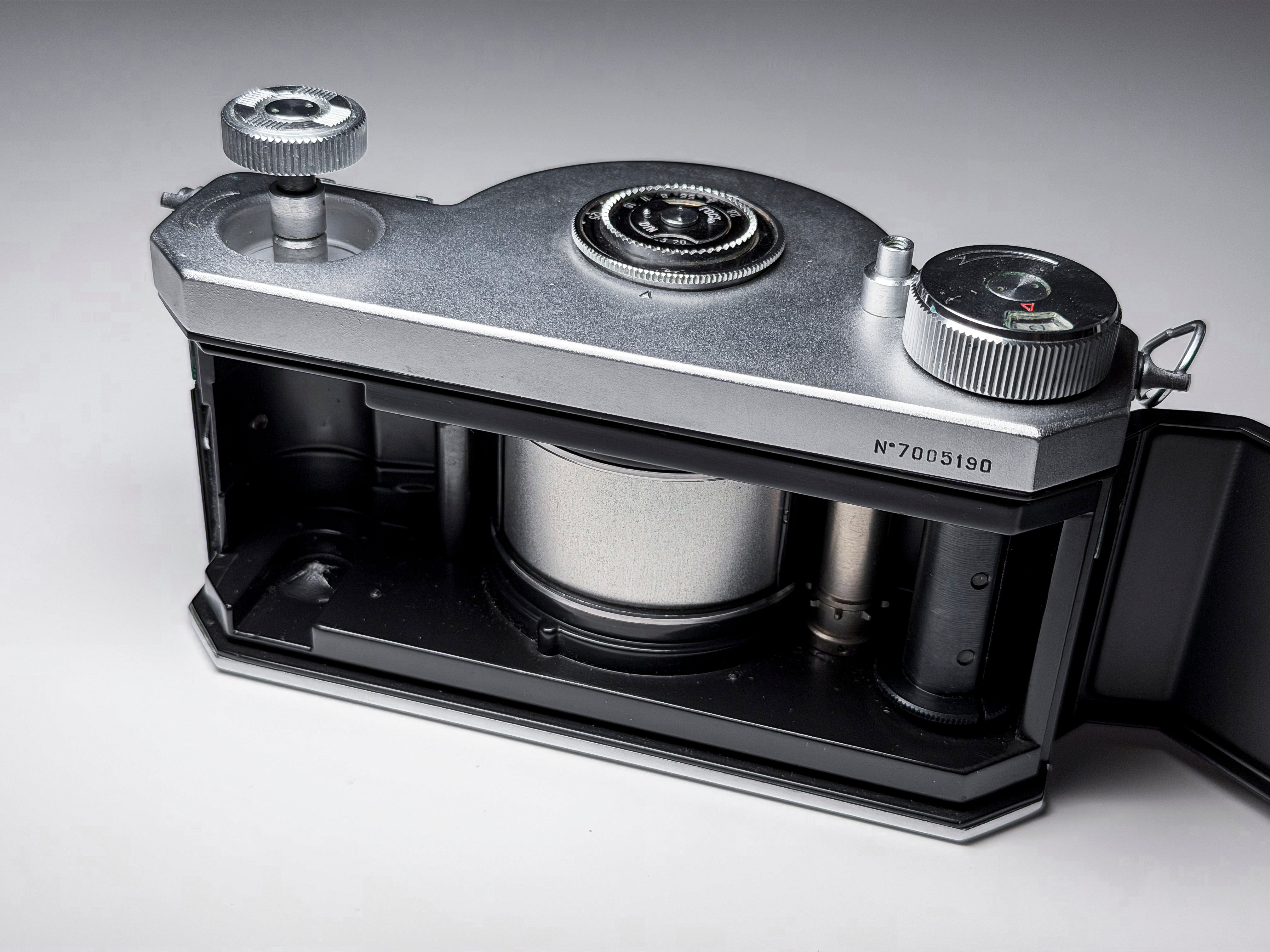

The camera uses a 28mm f/2.8 Industar-28 lens, a multi-element glass optic designed to maintain uniform sharpness and geometric accuracy across the panoramic frame. The lens is mounted in a rotating drum, which moves during exposure to project the image sequentially across the film plane, achieving a continuous panoramic effect without distortion typical of stitched images.

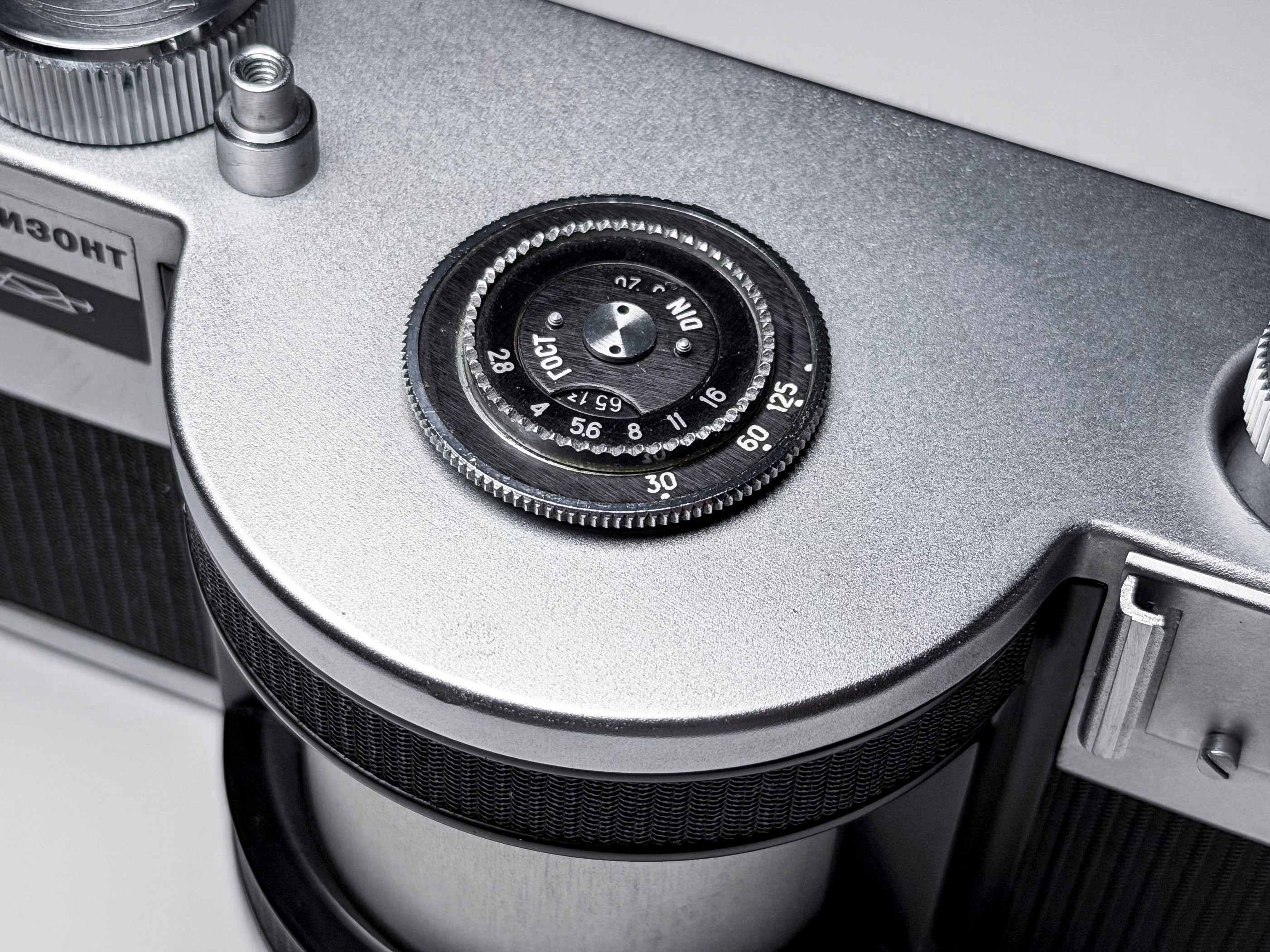

The mechanical shutter operates at two drum rotation speeds, providing exposure times between 1/30s and 1/250s, with manual aperture control from f/2.8 to f/16. Focusing is fixed, optimized for hyperfocal distance to maintain clarity from medium range to infinity.

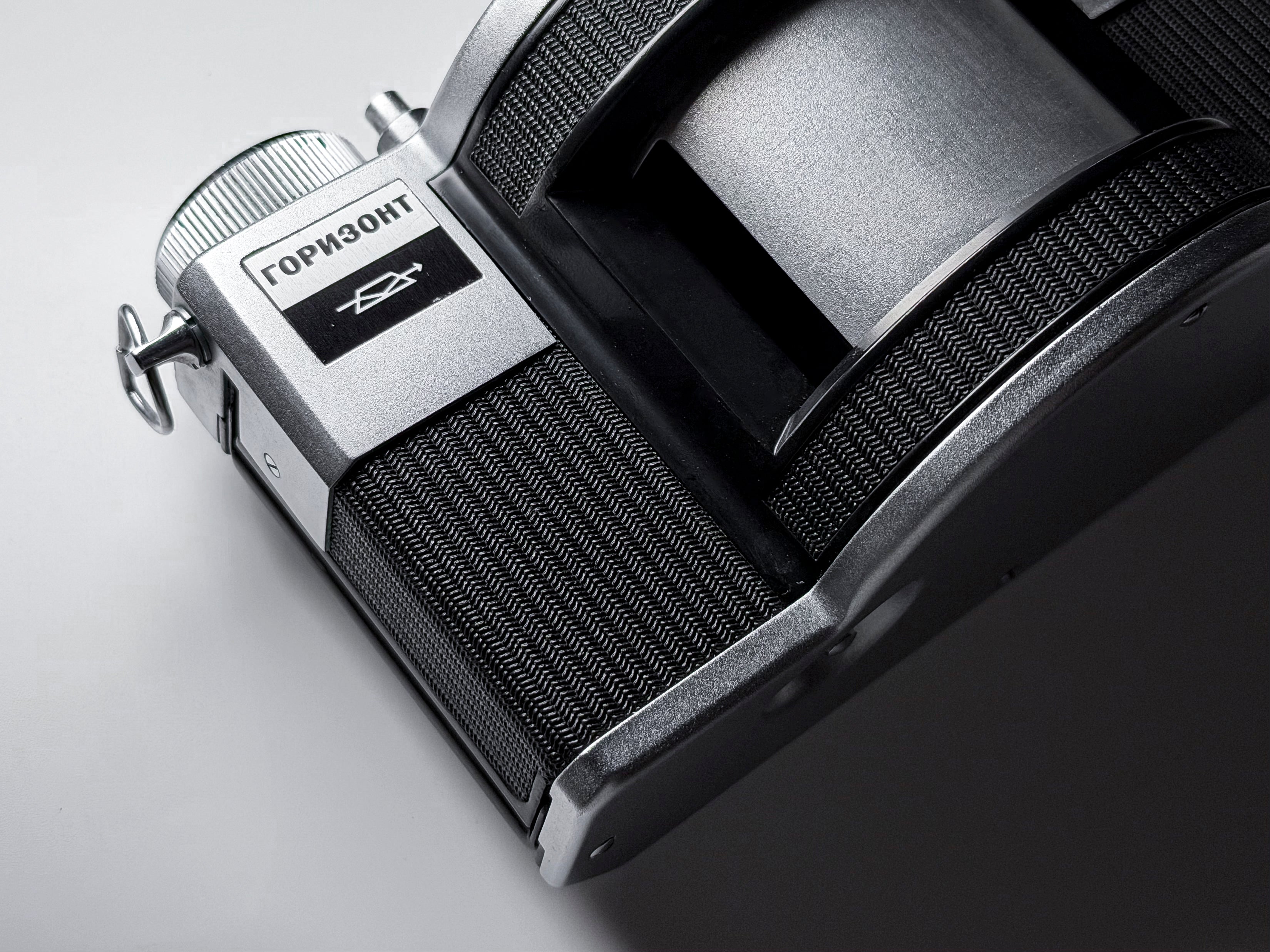

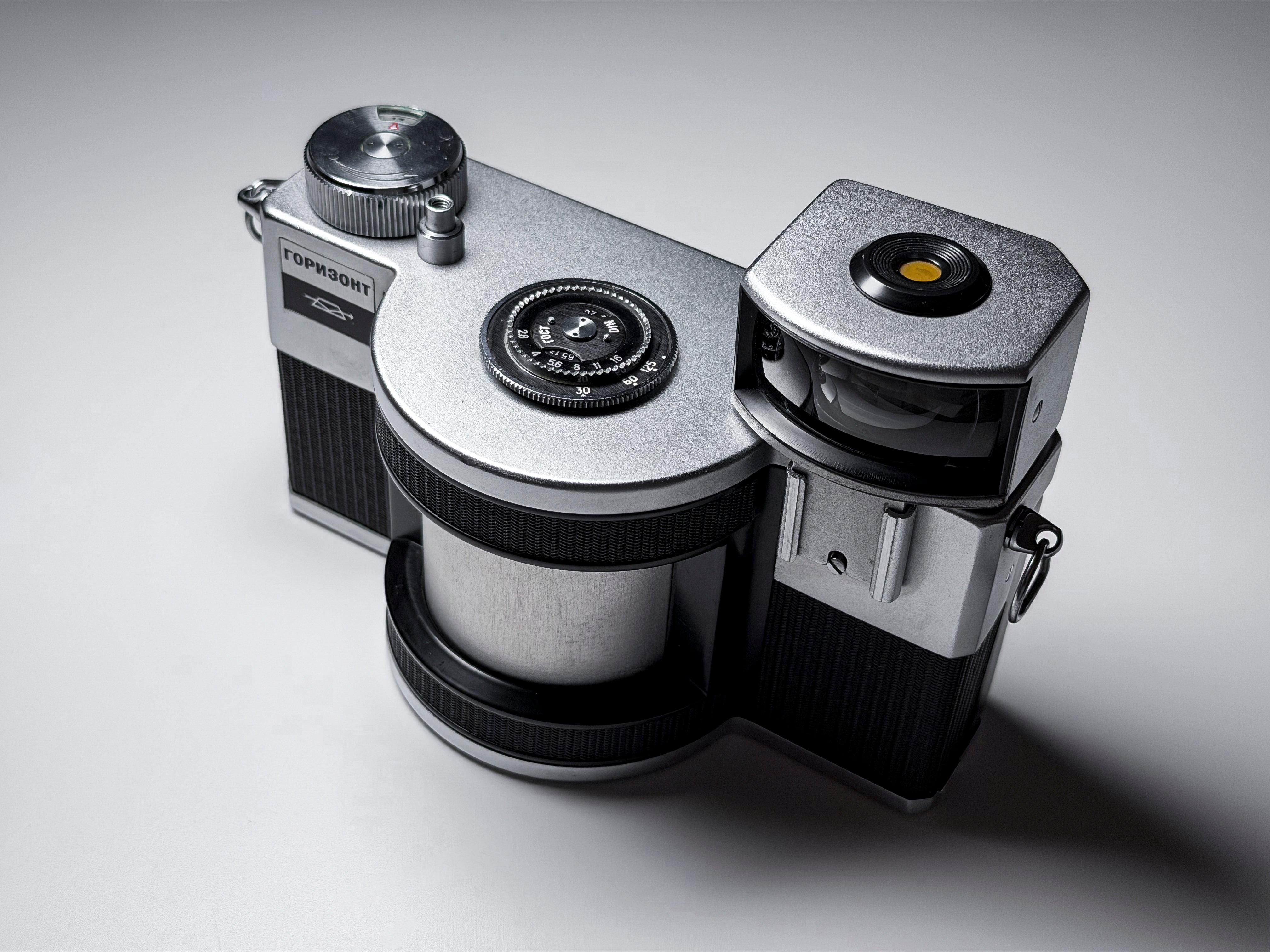

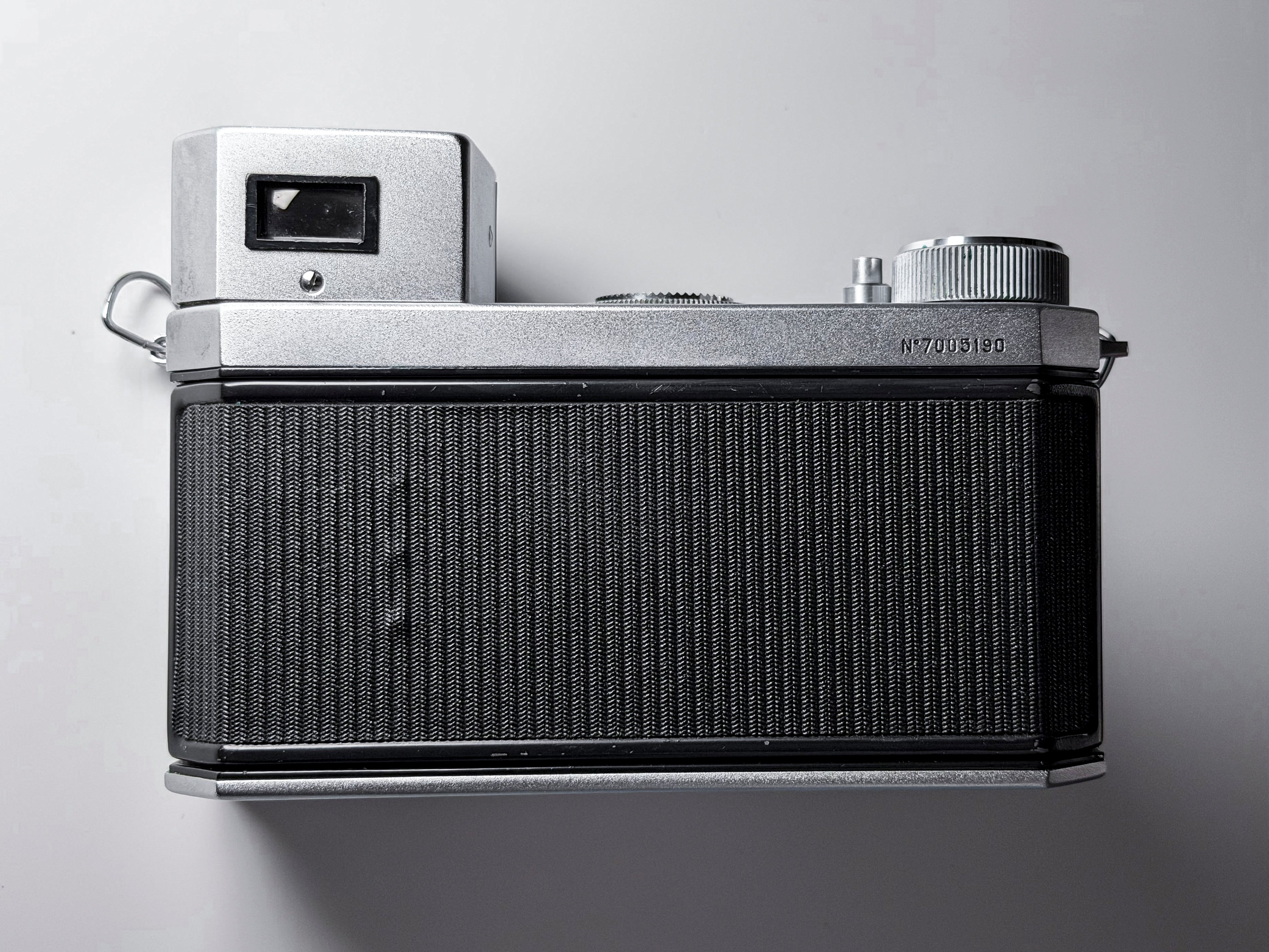

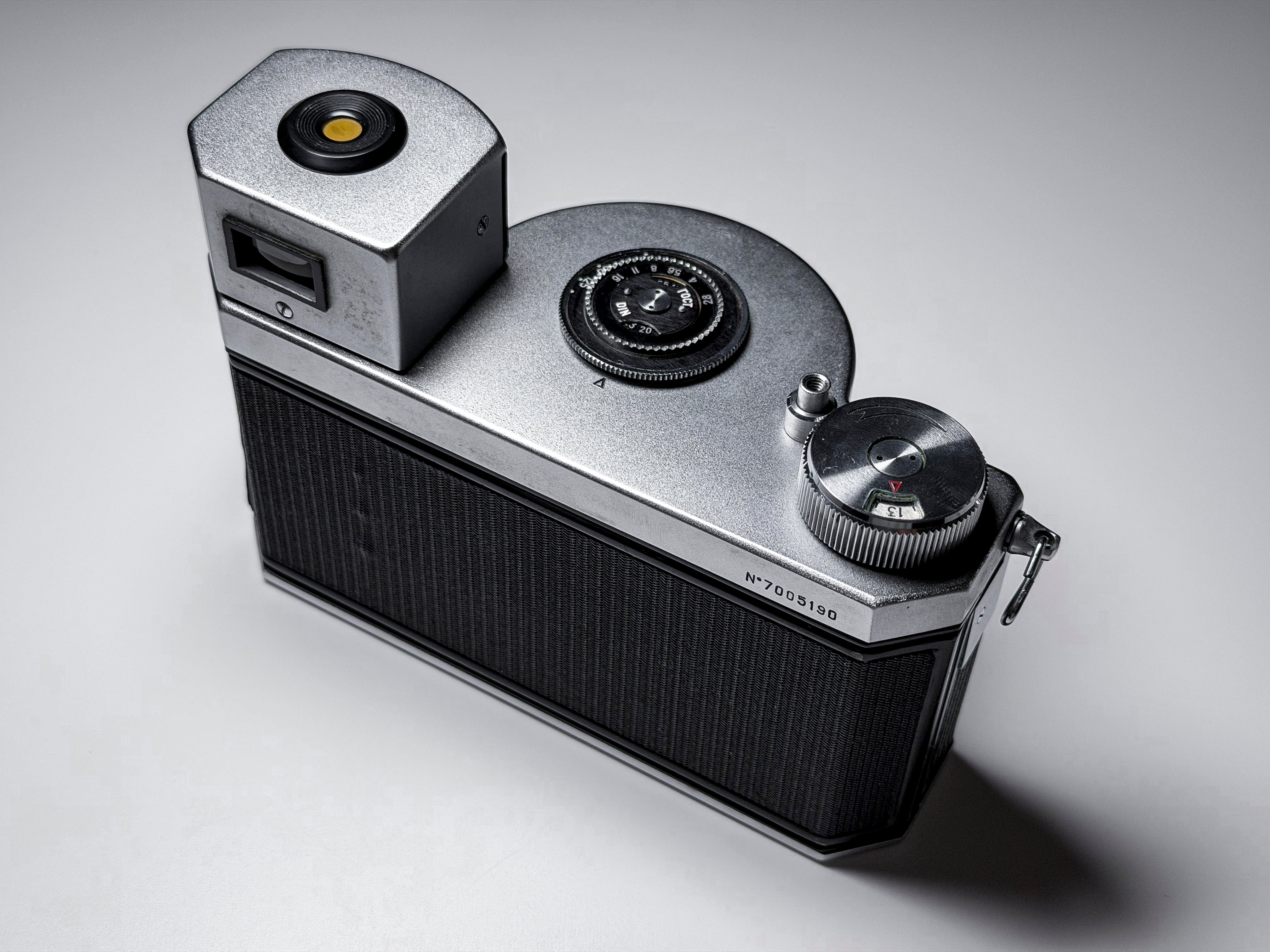

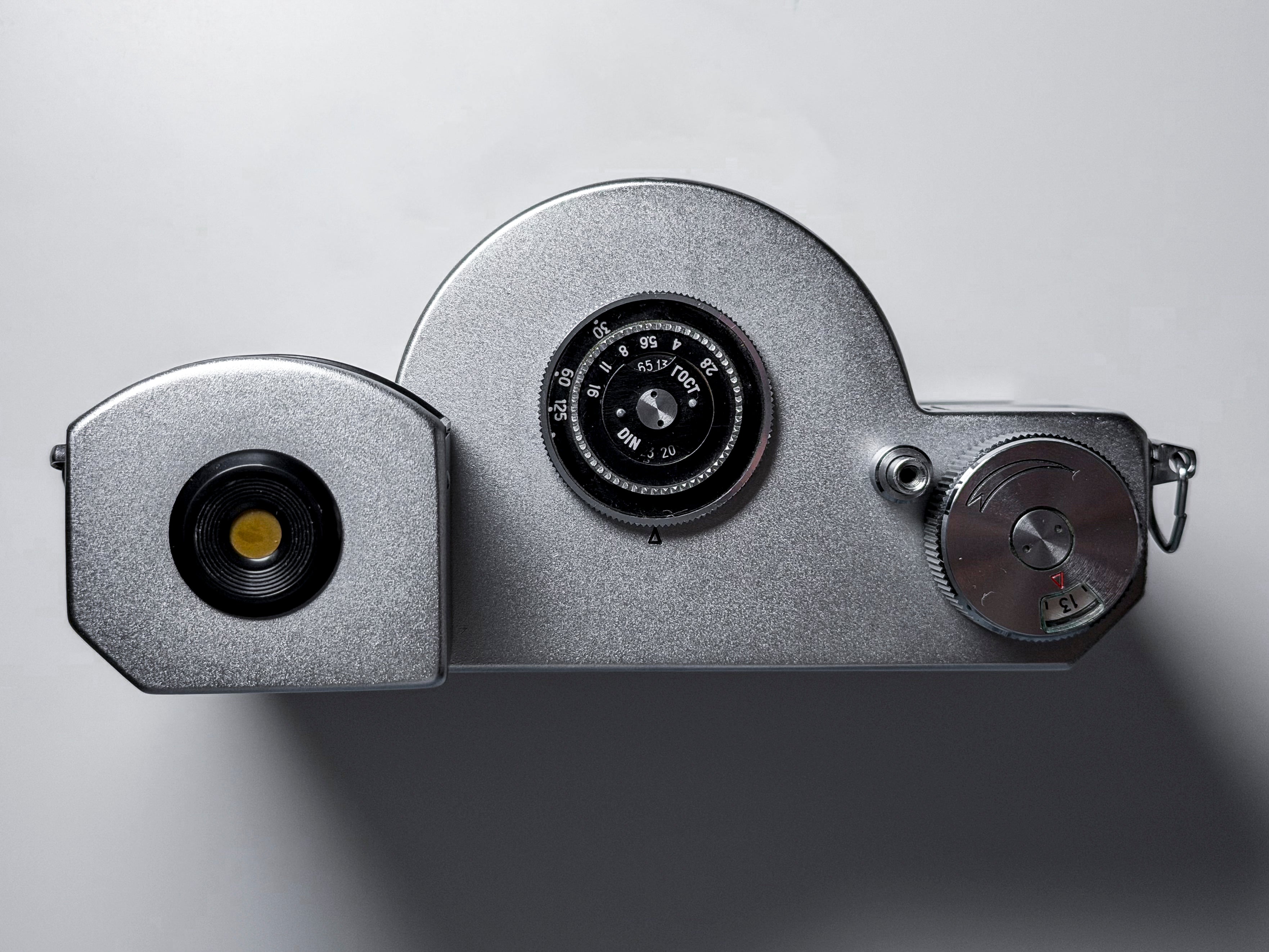

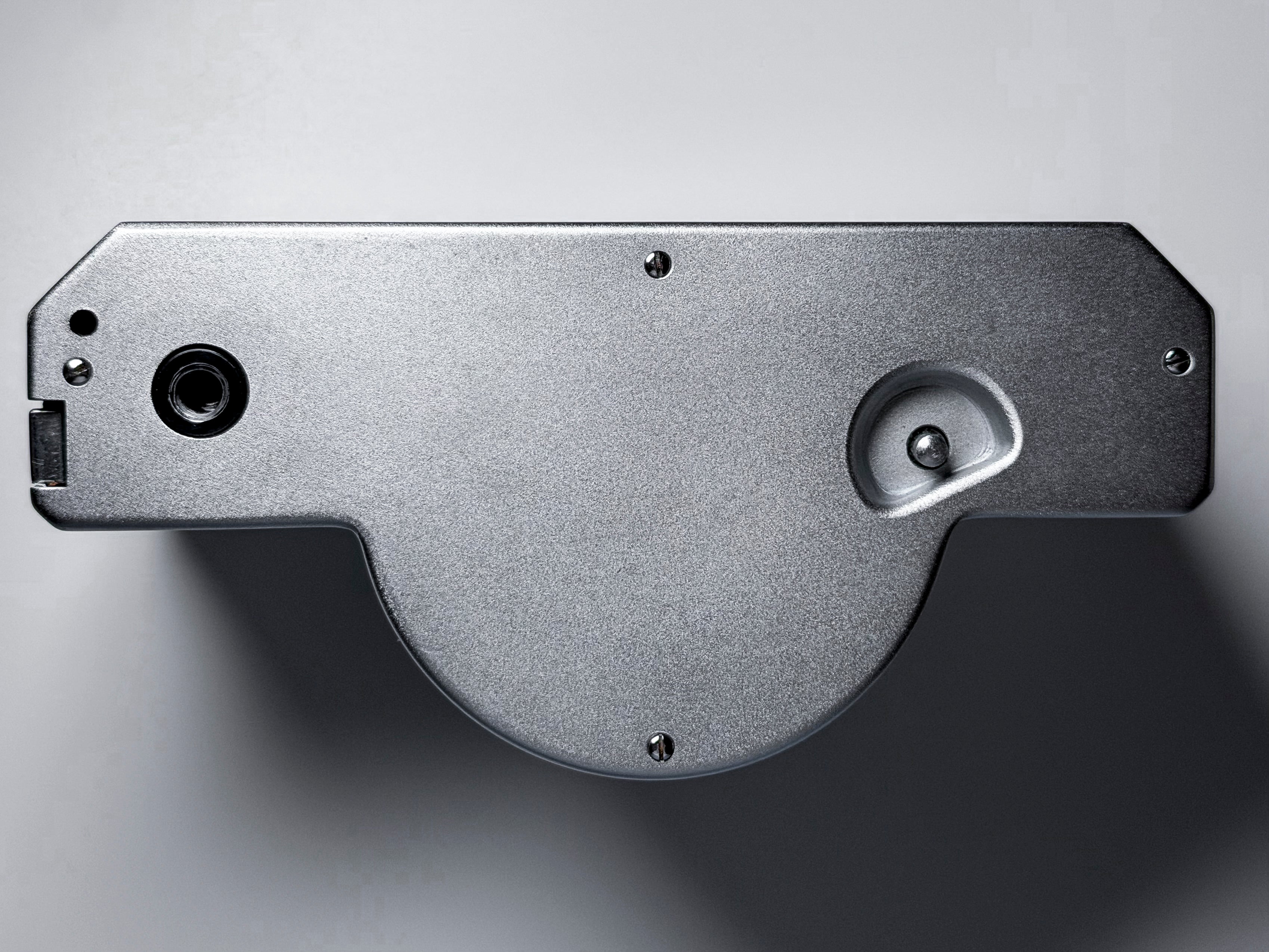

The Horizont features a robust metal body, a bubble level integrated into the viewfinder, and a tripod mount for stabilized shooting. Film advance and shutter cocking are linked via a single winding lever, ensuring consistent frame spacing.

Engineered for precision panoramic capture on 35mm film, the KMZ Horizont remains a mechanically sophisticated rotating-lens system designed for wide-field photographic applications.
